Discharge Diameter: 12”
Suction Diameter: 12 3/4”
Impeller Diameter: 18”
Max. Passable Spherical Solids: 4”
Max. TDH 33-50’ TDH
Max. Flow: 6000 GPM @ 33’ TDH
Hydraulic Flow requirements: 132 GPM
Max. Pressure 2000 PSI
Weight: 915 Lbs.

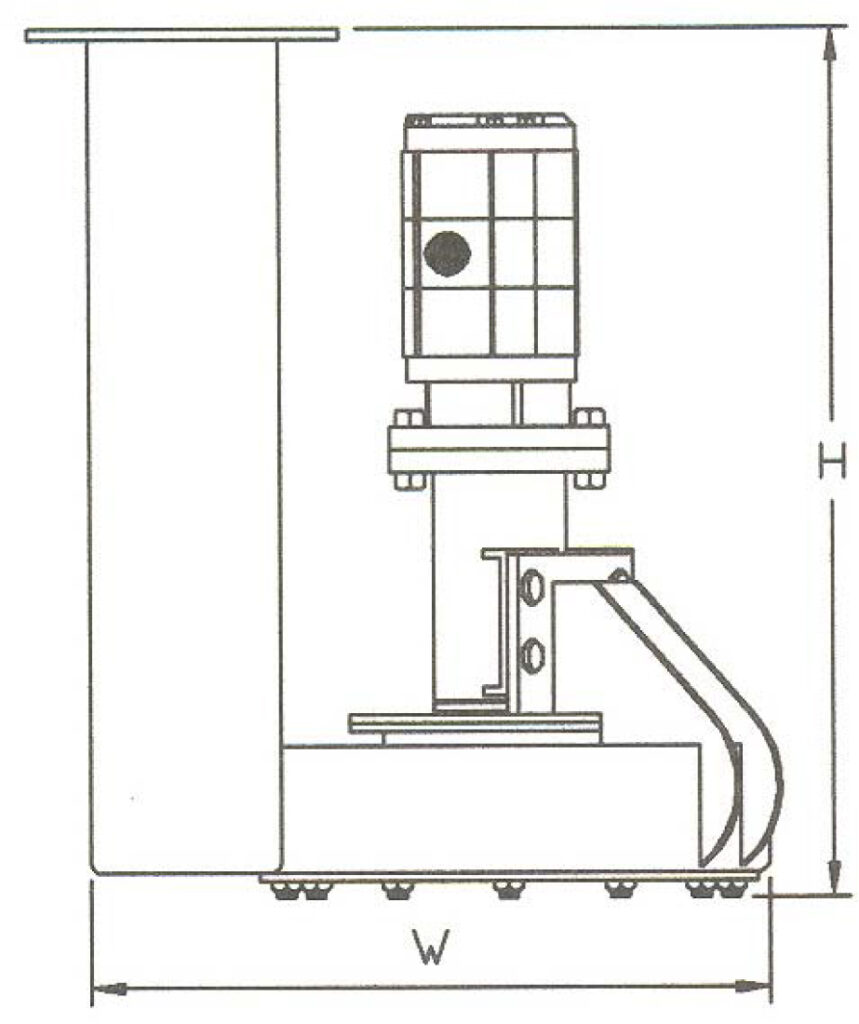

Dimensions: W=50”” H=33”
Discharge Fitting: 12” Male Pipe Thread
Heavy-duty hydraulic submersible pump with a 12” discharge, hydraulic motor, opened face impeller, heavy-duty grease or oil lubricated bearing block. The pump and impeller are fabricated using Brinell 360 steel.
