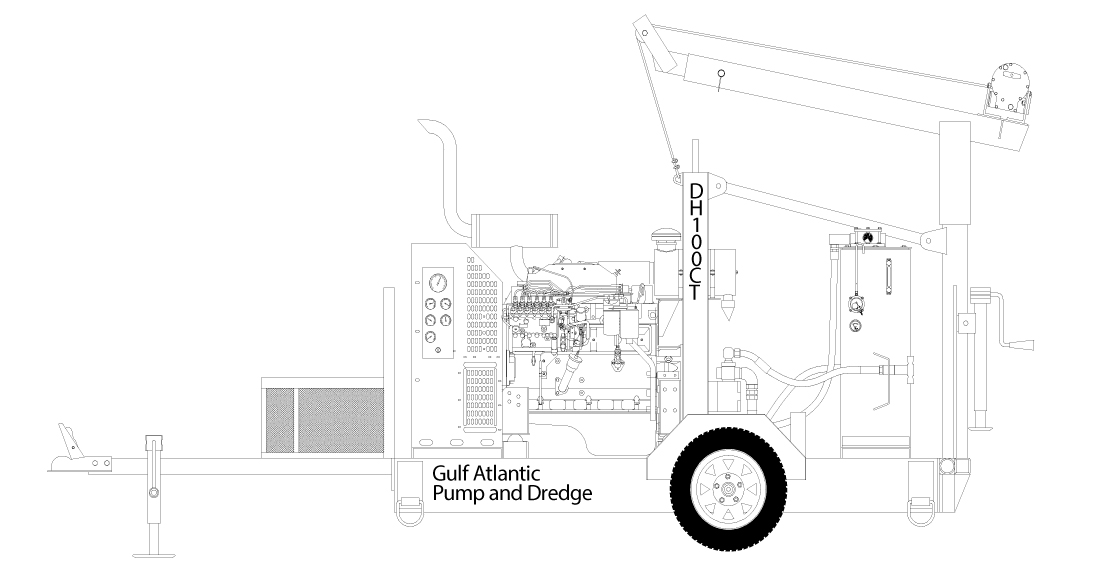

General
Overall length: 6”0”” (3.51 m)
Overall width: 6’-0” (1.83 m)
Height: 5’-8” (1.73 m)
Fuel capacity: 85 gallons (423.96 l)
Wet weight: 2,500 lb.(1 ¼ tons)
Hydraulic Oil Capacity: 50 Gal. (189.27 l)
(Dimensions based on skid mounted unit)
Engine
Deutz F3l-319 diesel, air cooled open engine with residential grade silencer, rated 55 BHP (451kW) @
2300 RPM. Deutz gauges, alarms, and shutdown systems. Deutz provides an internal oil cooler for hydraulic oil, thus a Thermal Transfer oil cooler does not come on this engine.
Hydraulic System
Suction strainer, return filters, relief valves, low oil shutdown, and temperature shutdown protect the hydraulic system. All units are equipped to allow any and all modifications or repairs with minimal oil loss.
Optional Equipment
Skid Mount
Electric or Hydraulic Telescoping Picker Crane Utility Basket
Slurry Circuit Tool Circuit Electric Brakes
Hydraulic Surge Brakes
Features
All units have bottom mounted fuel tank, which provides a lower center of gravity for more stability and larger fuel capacities. The submersible pumps or tooling being used can run dry, stall, or jam, without damaging the power unit. System requires no other power source allowing operation in remote areas. The axle, fenders, and tongue are easily removed to produce a skid mounted unit. Single point lifting bail allows easy mobilization for skid or trailer mounted units.
NOTE: Specifications may change due to continual product improvement.
