Pump Specifications:
Discharge Diameter: 8”
Suction Diameter: 8 3/4”
Impeller Diameter: 16 or 18”
Max. Passable Spherical Solids: 4”

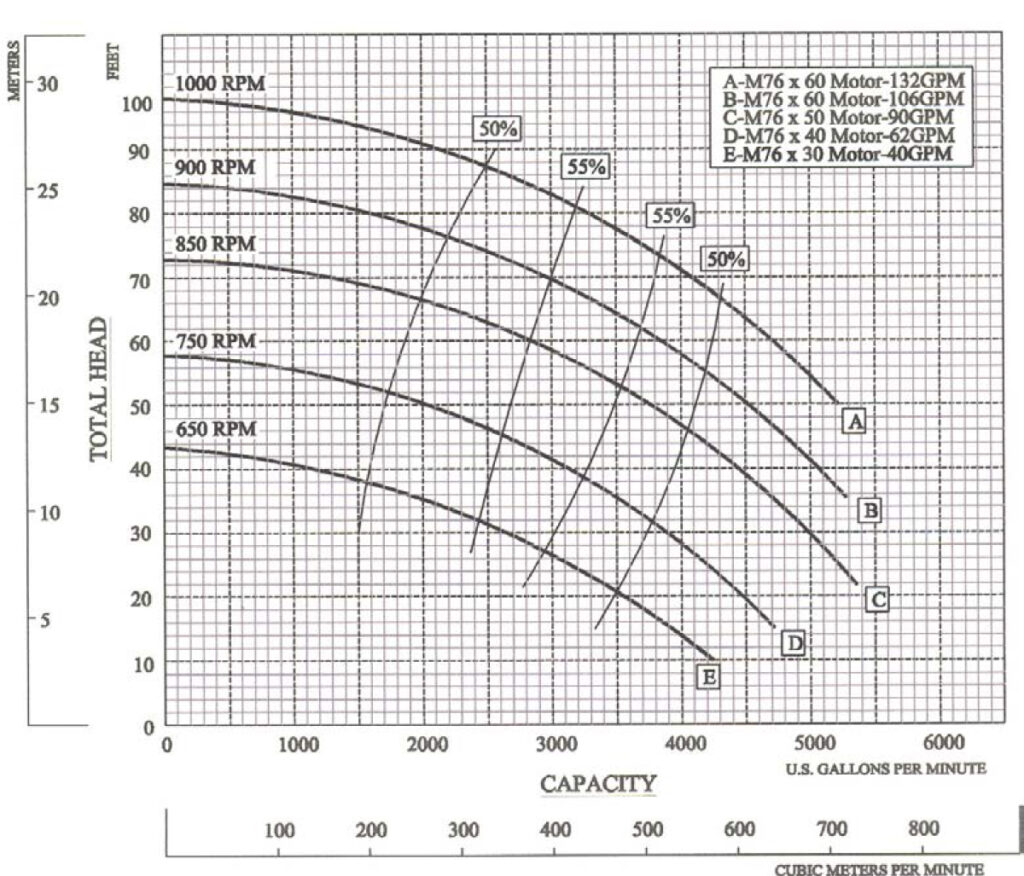

Max. TDH 43-85’ TDH
Max. Flow: 4000 GPM @ 15’ TDH
Hydraulic Flow requirements: 40-112 GPM
Max. Pressure 2000 PSI
Weight: 730 Lbs.

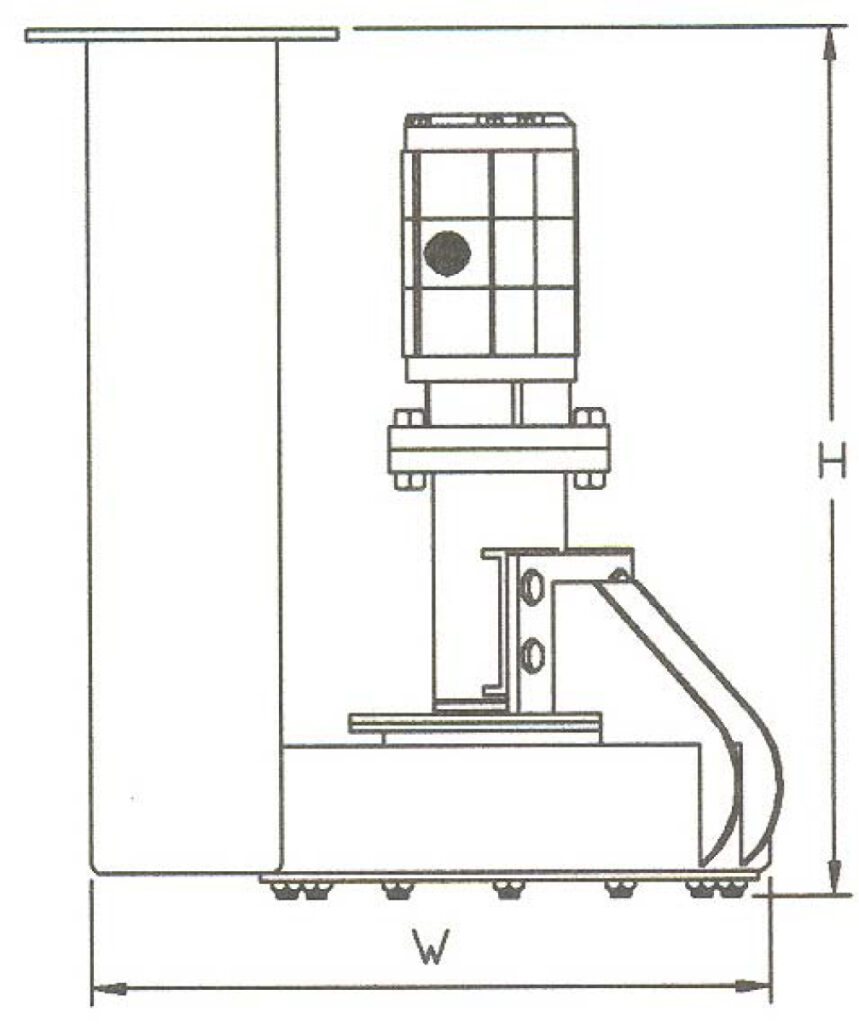

Dimensions: W=32”” H=38”
Discharge Fitting: 8” Male Pipe Thread
Heavy duty hydraulic submersible pump with a 8 discharge, hydraulic motor, opened face impeller, heavy duty grease or oil lubricated bearing block. The pump and impeller are fabricated using Burnell 360 steel. With larger size hydraulic motors, the 18” diameter impeller may be used to provide greater lift.
